DPA 4060 CORE+ Omni Miniature Microphone, Normal SPL, MicroLock

4060 CORE+ Omnidirectional Miniature Microphone, Normal SPL

The DPA 4060 CORE+ Omni Miniature Microphone is small in size, but mighty in flexibility. The 4060’s miniature size enables an exceptionally accurate omnidirectional pattern. You therefore, do not need to aim it directly at the sound source to achieve quality pickup.

The omnidirectional pattern also makes it less sensitive to handling noise, as well as pop and wind noise. It handles sound pressure levels of up to 134dB before clipping occurs.

Diversity in Applications

The DPA 4060 CORE+ Omni allows for a diverse range of applications. Originally designed for use with wireless systems in theatres, it is also now one of the most loved microphones for film and television applications.

Ideal for capturing speech in all of its nuances, it is also suitable for close-miking a wide range of instruments. For applications where the sound source is more remote or dampened and you need to have a good balance of signal to noise ratio, the 4060 is the perfect solution.

Interchangeable Grids

By selecting the correct grid for your application, it is possible to modify the acoustic response of the 4060 Series.

Included with each microphone are two grids.

The pre-fitted Soft Boost Grid gives a 3dB soft boost at 8-20kHz. It is recommended to be used when the microphone is mounted on the performer’s head, and in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10dB soft boost at around 12kHz for applications where chest-placement is preferred, and including under-clothing applications. Both of these grids are made of anodised stainless steel, giving a tough and scratch resistant surface. You can detach the grids from the microphone and clean them of sweat, makeup, etc.

Colours Available

The DPA 4060 CORE+ Omni Miniature Microphone, Normal SPL is available in four colours:

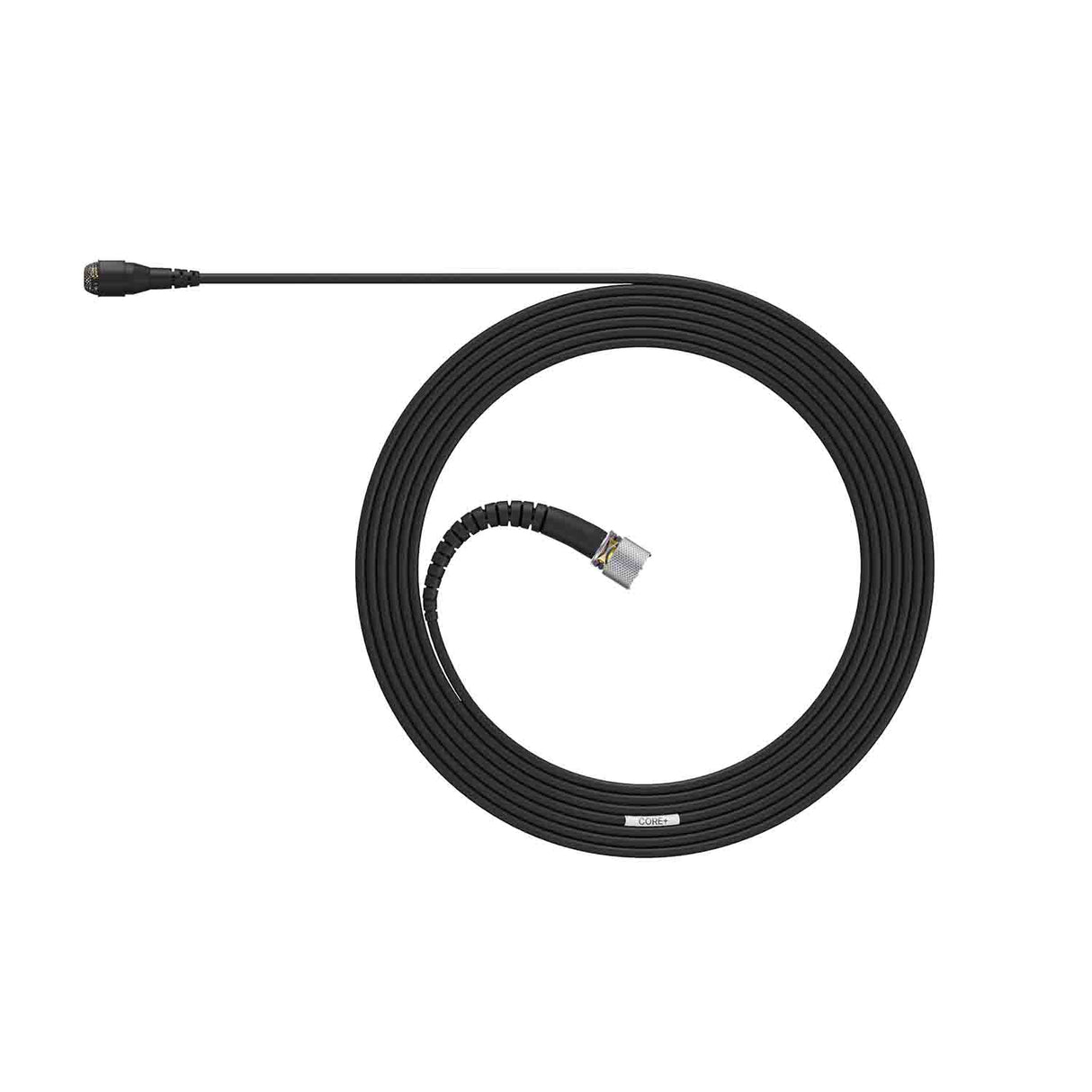

• Black

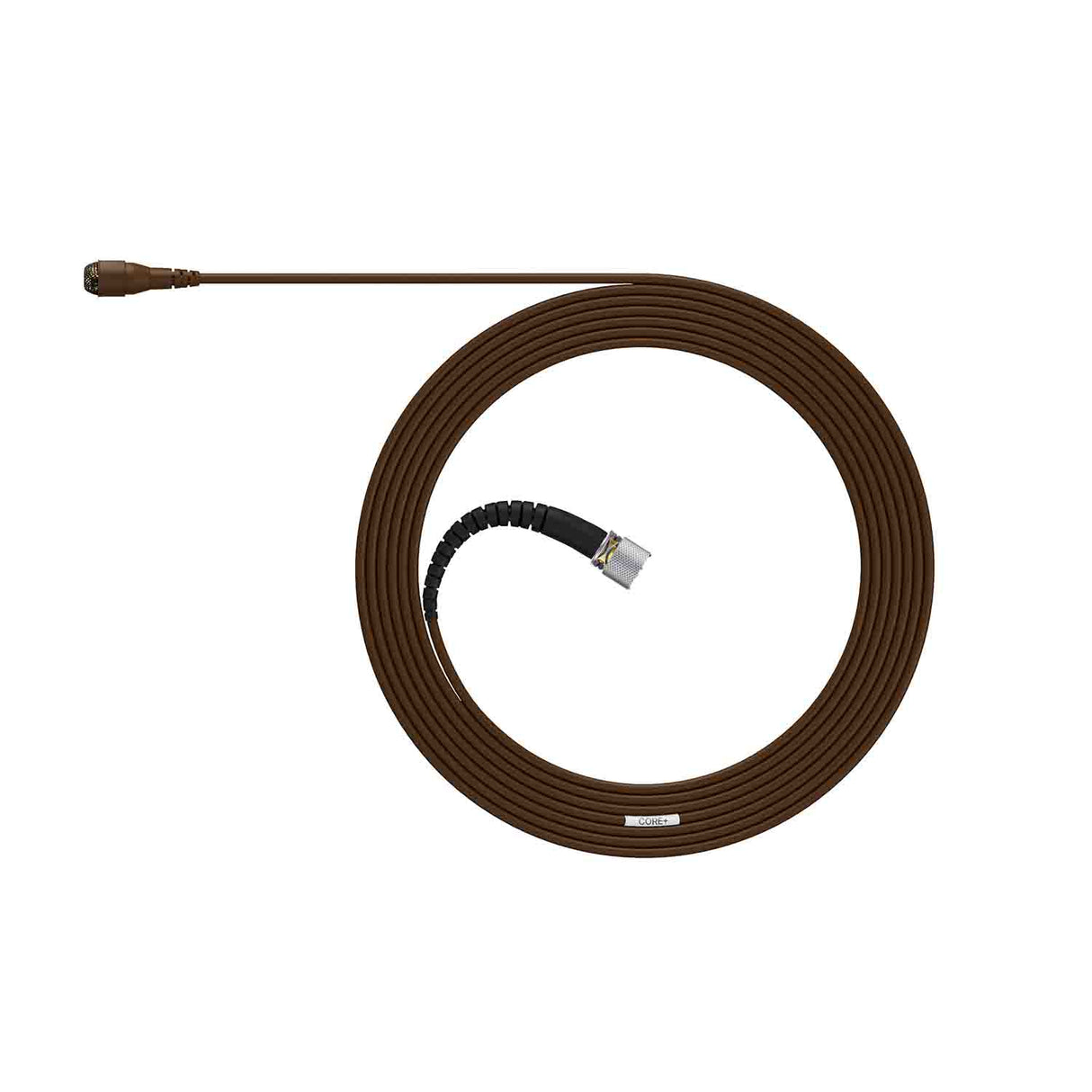

• Brown

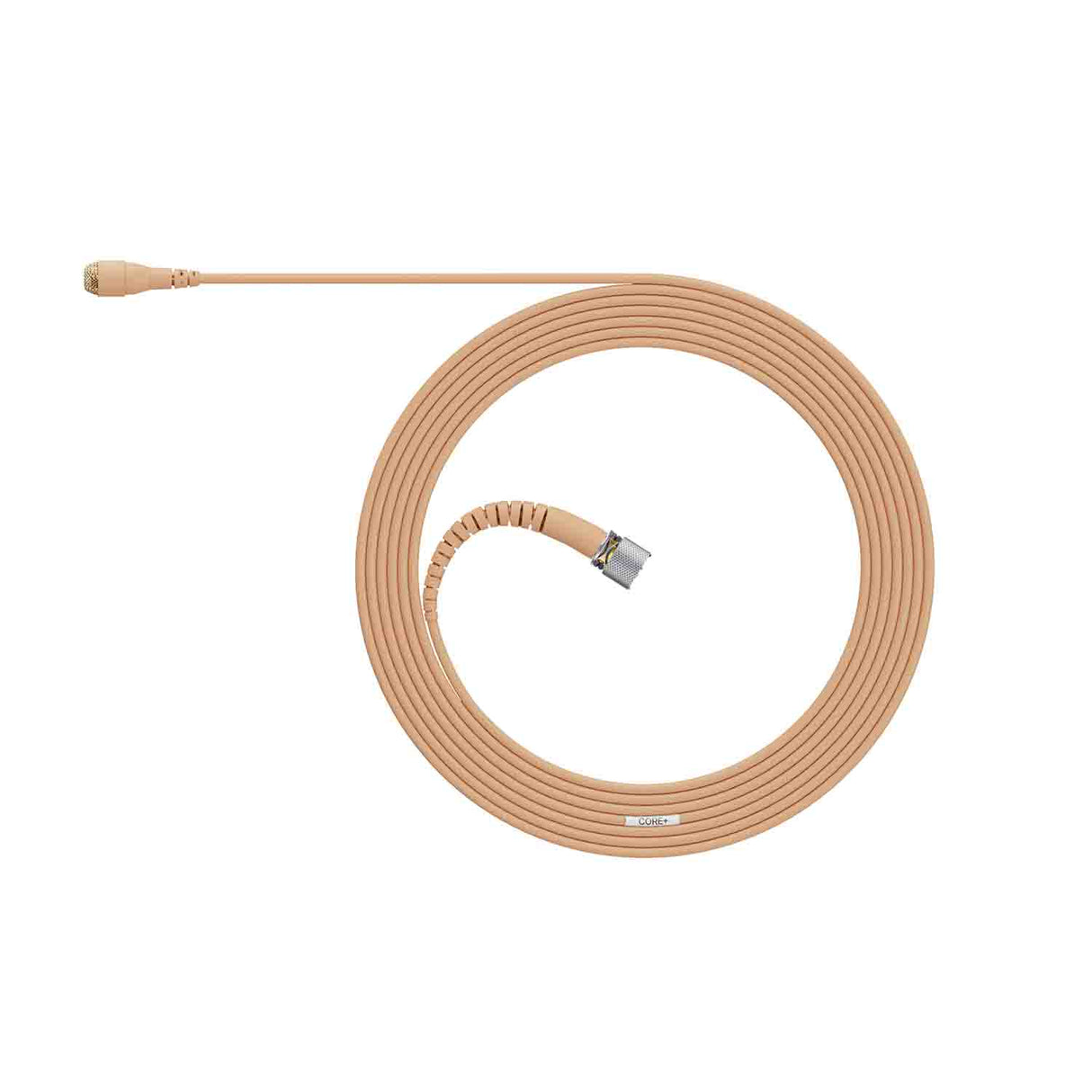

• Beige

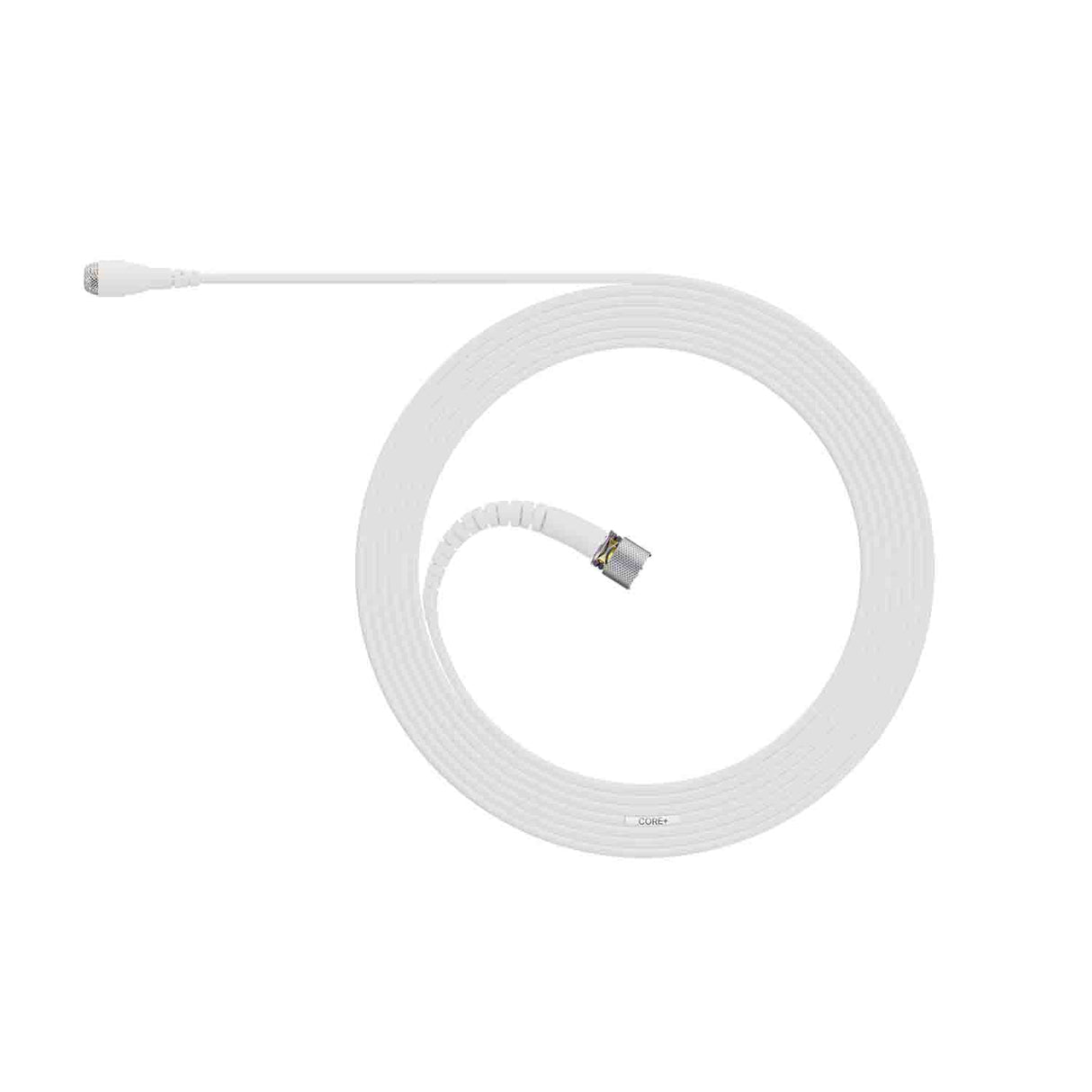

• White

An even more robust, heavy-duty version is also available.

Introducing CORE+ by DPA

DPA CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn’t acoustically possible. This technology neutralises distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.

Audio will never be the same

Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Features of CORE+:

• Effectively negates microphone distortion across the entire dynamic range
• Captures the purest, clearest sound at the source
• Lets sound engineers focus on shaping an extraordinary experience for the audience
• Reduces hassle from unpredictable challenges in the live show environment

Distortion free…

Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

…from high to low SPL

Especially at higher sound pressure levels and with multiple microphones on stage, the elimination of distortion will enhance the overall clarity and transparency of the entire sound image.

For miniature microphones in particular, sound professionals in theatres and film industry are the primary beneficiaries.

Neutralising distortion

Microphones with CORE+ provide even more clarity across the entire dynamic range, from low to high sound pressure levels.
